The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size.

Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre.

The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines.

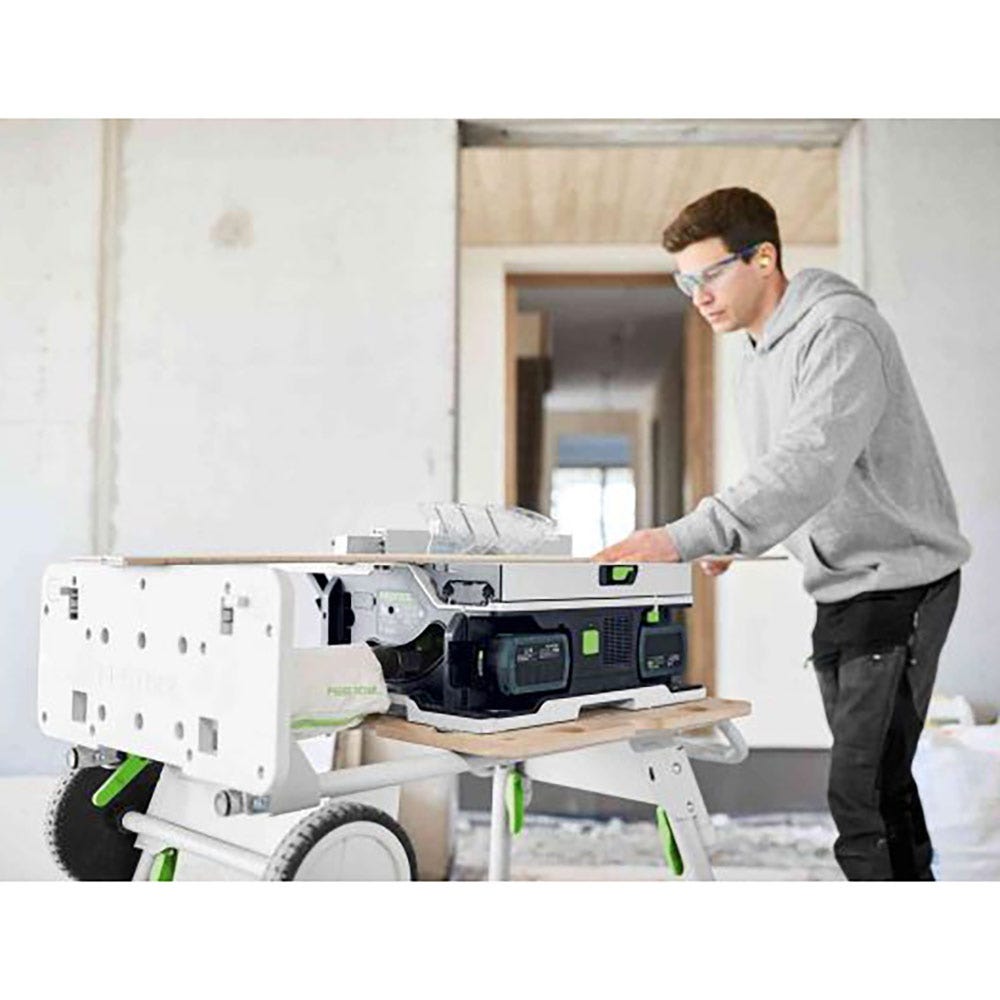

Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.

• Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2° to 47°.
• Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.
• Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.

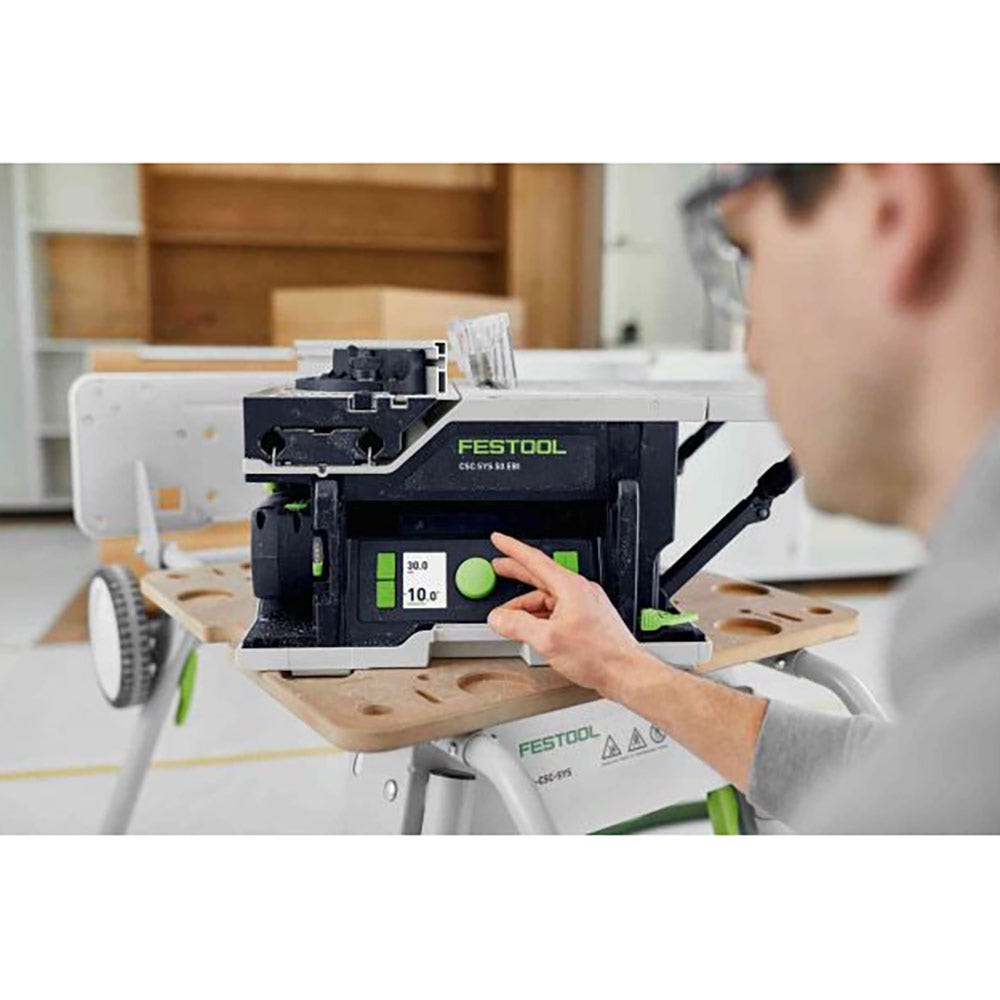

• Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.
• Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
• Convenient: Four saw blade positions can be saved and selected via the digital display.
• Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
• Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70°
• Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
• Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
• Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
• Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
• Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
• Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
• Healthy working with a system: Ideal also in combination with the Festool cordless extractors
• Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment

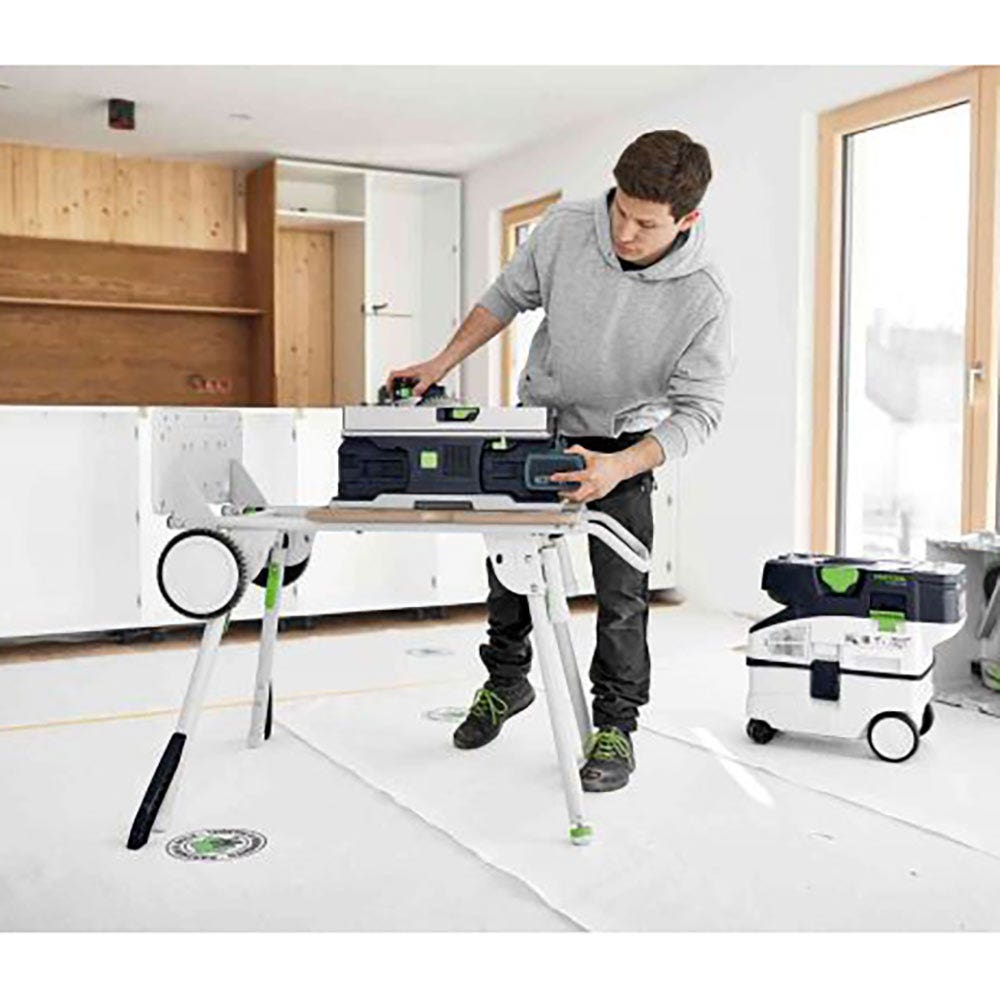

• Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
• Unique: Three-year warranty for battery packs and chargers too
• Main applications
  • Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
  • Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
  • Angled cuts from -10° to 47° thanks to tilting saw blade
  • Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
  • Transport practically in the handy Systainer format

Specifications

• Cutting Height 45° (mm): 0 - 34 mm
• Mitre Angle (°): 0 - 70 °
• Inclination Angle (°): -10 - +47 °
• Battery Voltage (V): 2 x 18 V
• No Load Speed (rpm): 4500 – 6800 min-¹
• Dust Extraction Connection Diameter (mm): 27/36 mm
• Power Source: Cordless
• Drive Type: Battery

Includes

• 1 x CSC SYS 50 18V Cordless 168mm Systainer Saw
• 1 x SYS 18V Energy Set 2 x 5.2Ah TCL6 Duo in Systainer
• Fine Tooth Saw Blade 168mm x 1.8mm x 20mm 42 Tooth
• Parallel side fence
• Preset profile setting rail
• Splitting wedge for concealed cuts
• Splitting wedge with protective hood
• Hex key, WAF 6
• Workpiece holder
• Chip collection sack
