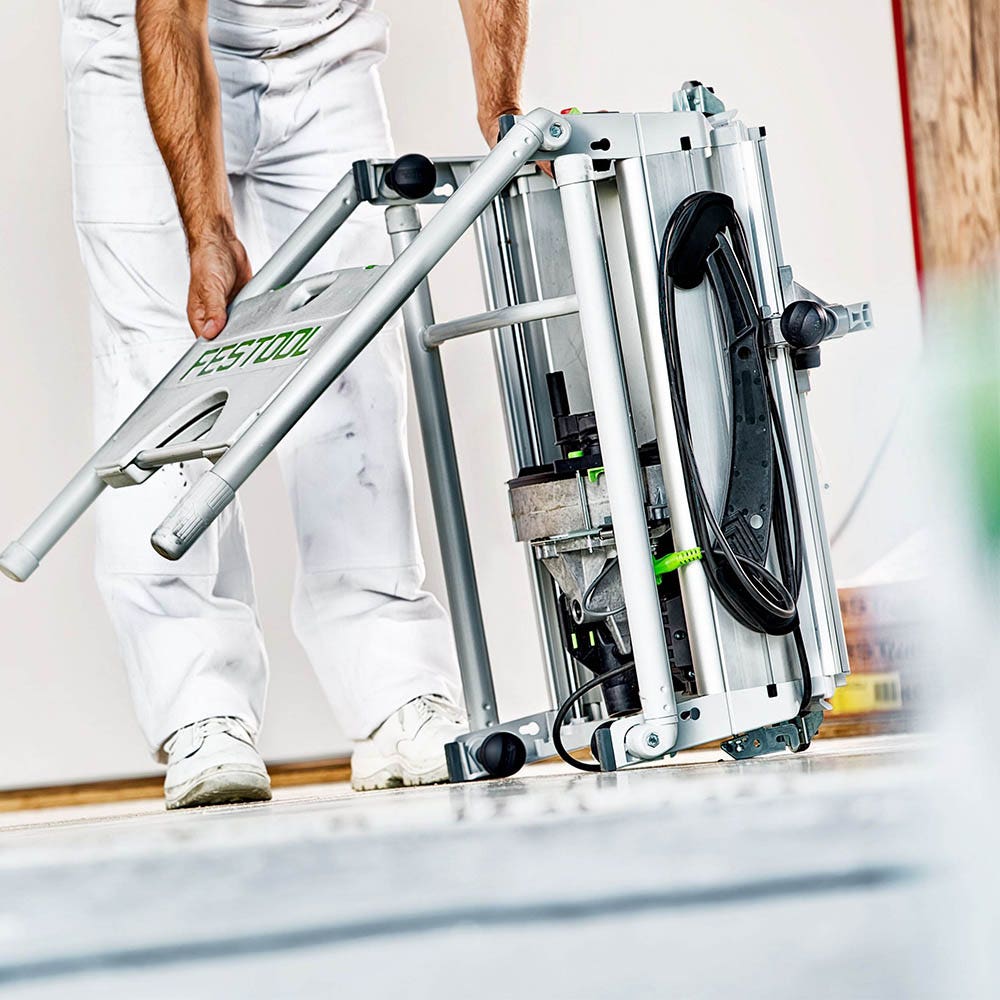

The PRECISIO CS 50 EGBis the perfect solution for cross and rip cuts in applications involving interior fitting, furniture assembly and exhibition stand construction. It's lightweight and folding legs make it easy to transport and set up in seconds. It's 180 degrees swivellingmitre guide and huge 304 mm cutting path means the trimming saw is easily controlled via a multifunction handle and adjustable control elements. The moving splinterguard minimises splintering on both sides of the blade. Dust is efficiently removed when used with a Festool Dust Extractor, thanks to the integrated extraction port.It also comes with neat accessory storage and integrated transport rollers for greater mobility.

• Cross cuts up to 300 mm wide
• Rip cuts up to a depth of 52 mm
• Interior fitting
• Cross cuts up to 200 mm wide at 45 degree angle
• One site exhibition stand construction
• Furniture assembly
• CLEANTEC Dust Extraction - Standard adapter (27/36/50 mm) for dust extraction to safeguard the operator and the environment.
• FastFix - Makes changing accessories or consumables for routing, sawing, planing, sanding, drilling and screwdriving tools easier.
• Groove in Saw Table - For fixing and for safeguarding against accidental workpiece slippage, using lever clamps.
• MMC Electronics - Multi Material Control power electronics with adjustable constant speed and temperature monitoring for work with all types of materials.
• Quick Acting Brake - For safe work when planing, sawing and routing.
• Splinterguard - Patented splinterguard for splinter free cuts on both sides when sawing.

Specifications:

• Motor Type: Brushed
• Power Lead Type: Fixed Lead
• Saw Blade Diameter: 190 mm
• Cutting Height 45°: 0° - 37°
• Cutting Height 90°: 0° - 52°
• Inclination Angle: 0 (-2)° - 45 (+47)
• Cutting Path: 304 mm
• Table Dimensions: 585 mm x 400 mm
• Table Height - Legs Folded Away: 316 mm
• Table Height - Legs Unfolded: 900 mm
• Dust Extraction Connection Diameter: 27 mm / 36 mm

Includes:

• 1 x CS 50 EBG PRECISIO Trimming Saw
• 1 x Universal Saw Blade HW W32 493198
• 1 x Mitre Guide 574797
• 1 x Foldaway Legs 492245
• 3 x Splinterguards 492241
• 1 x Dust Extraction Hose Set with Y Piece 488292
• 1 x Push Stick
• 1 x Accessories holder

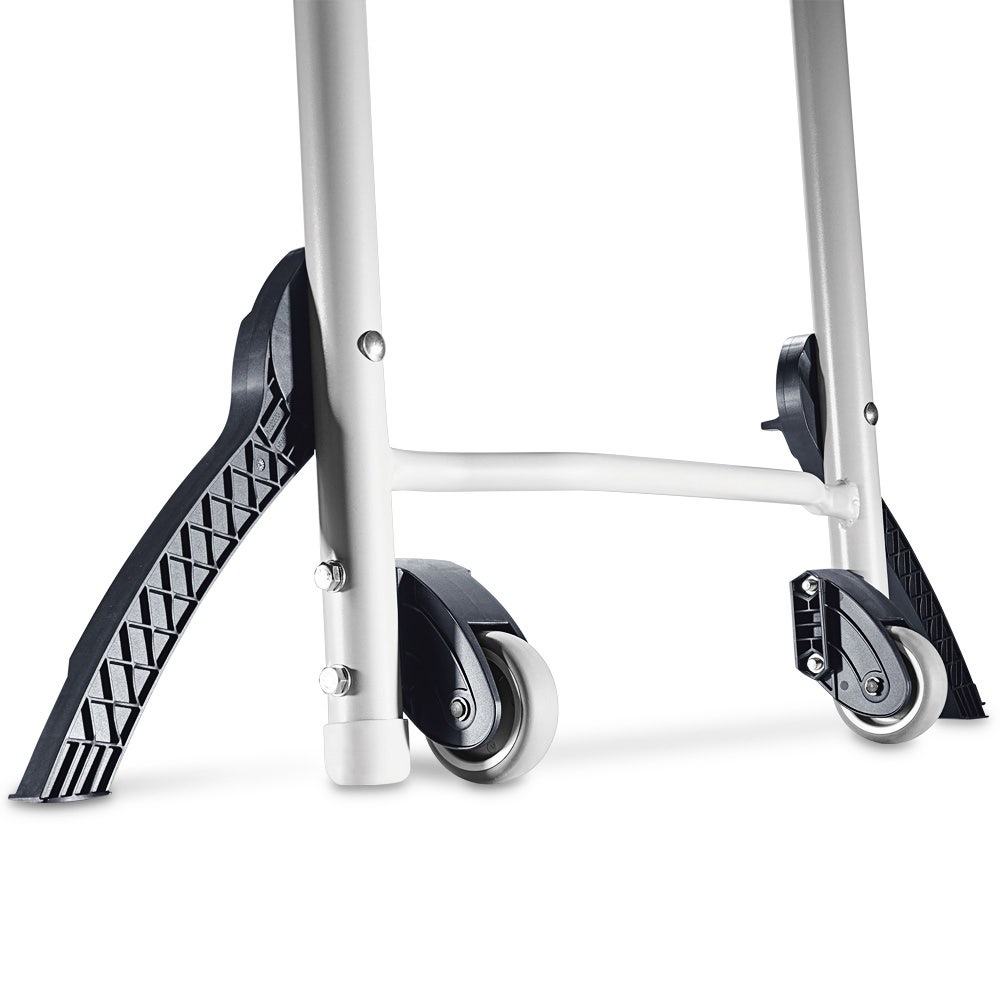

• 1 x Support with transport roller
• 1 x Tool Manual
